Engineering Rubber Since 1972

Valves

DIAPHRAGM VALVES

The heart of Diaphragm Valve is Rubber Diaphragm and its rubber lining and we have specialised in the same for Last 45 years.

KURWA RUBBER offer KIPFLO make Unlined and Rubber Lined Diaphragm valves having weir type design as well as straight through type design for various applications.

Valve body: C.I. Gr. 210, CS, and SS 304 – 316
End Connections: Flanged, screwed Butt
Operated: Handwheel or Actuator operated.
Face to face distances: As per BS-5156.
Interchangeability: 100% interchangeable
Diaphragms: Neoprene, Buna-N, EPDM, Butyl, Hypalon
Rubber linings: Ebonite, Neoprene, Butyl and Hypalon.
Size range: For Type-A: 15mm NB to 300mm NB.
Size range: For Type-KB: 25mm NB to 150mm NB

Diaphragm Valves

DETAILED DIMENSIONAL DRAWINGS AVAILABLE ON REQUEST

Flap Type Non-Return Valves

We also offer KIPFLO make Unlined and Rubber Lined Flap Type Non-return valves for vertical and horizontal use with Flanged ends and Metal Inserted Rubber Flaps. Face to face distances are as per international standards. Flanges drilled or undrilled as per client’s requirement.

Rubber linings available are Ebonite, EPDM, Neoprene, Butyl and Hypalon.

Our size range is: 15mm NB to 200mm NB.

Non-Return Valves

OTHER TYPE OF VALVES

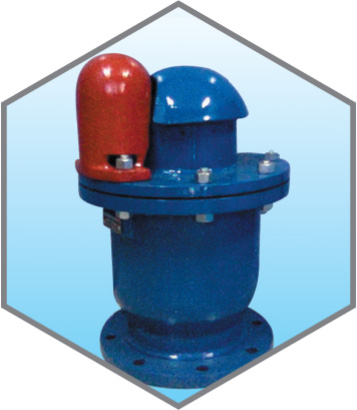

  • Non Slam Type Valve

    Non Slam Type High Performance Kinetic Air Cushion Valve
    Size: 50, 80, 100, 150 & 200

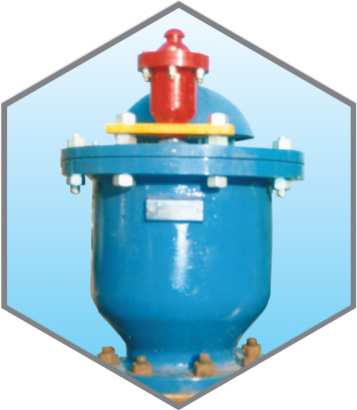

  • Kinetic Air Valve

    High Performance Kinetic Air Valve For Water
    Size: 50, 80, 100, 150 & 200

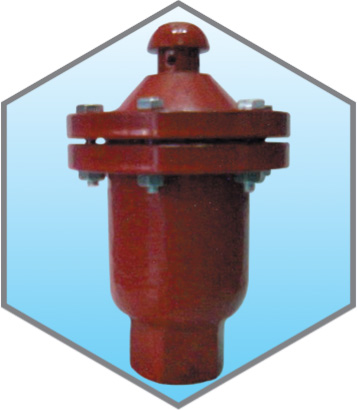

  • Automatic Air Release Valve

    Automatic Air Release Valve
    Size: 1" BSP, ¾" BSP

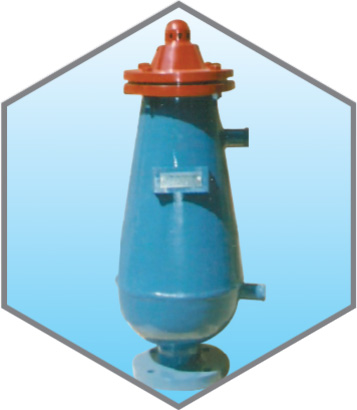

  • Air Valve for Sewage

    High Performance Air Valve For Sewage
    Size: 80, 100 & 150
